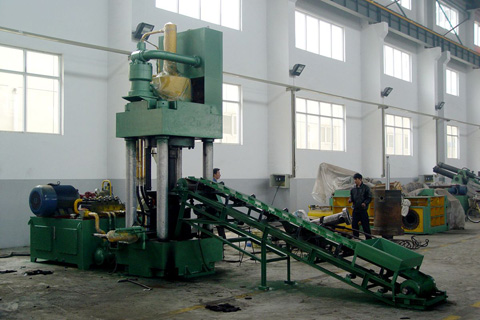

Y83 Briquetting Press

Applications:
Y83 scrap briquetting presses (hydraulic briquetting machines) are applied to compress metal chips or sawdust (steel, cast iron, aluminum & copper) into high density briquettes to reduce burning loss during smelting. Cast iron briquettes, can substitute pig iron as raw material.

Features:
> Hydraulic drive, operation stable, no vibration, safe & reliable.
> Need simple foundation.
> PLC control, manual or automatic operation optional.

Video Center

  • YE83-400W
  • YE83-500

Technical Specifications

Model Cyl. Force (kN) Press Mould (mm) Pressure on Briquet (MPa) Briquet Size (mm) Briquet Weight - Cast Iron (kg) Production Rate (kg/hr) Motor (kW)
Y83-250 2000+550

Φ110×180

Φ120×180

263

221

Φ110×(50-70)

Φ120×(50-70)

2.6-3.7

2.9-4.1

800-900 18.5
YE83-250 2000+550

Φ110×300

Φ120×300

263

221

Φ110×(70-100)

Φ120×(70-100)

3.6-5.2

4.1-5.9

1000-1100 22
YE83-315 2850+550 Φ120×300 278 Φ120×(70-100) 4.4-6.3 1100-1200 30
Y83-400 3450+550 Φ140×300 260 Φ140×(70-100) 5.9-8.5 1200-1300 30
YE83-500 4900+600

Φ150×300

Φ180×300

200×200×400

283

196

125

Φ150×(70-100)

Φ180×(70-100)

200×200×(60-100)

6.9-9.9

8.9-12.8

Precompression for Chips

1300-1800

1300-1800

Precompression for Chips

45

45

55

YE83-400W 3450+550 Φ140×300 260 Φ140×(70-100) 5.9-8.5 2000-3000 45+15
YE83-500W 4500+800

Φ150×300

Φ180×300

260

196

Φ150×(70-100)

Φ180×(70-100)

6.9-9.9

8.9-12.8

2300-3500 55+22
YE83-630W 5500+800

Φ160×300

Φ200×300

260

200

Φ160×(70-100)

Φ200×(70-100)

7.7-11

10.3-14.7

2600-3900 2×55
