We offer:

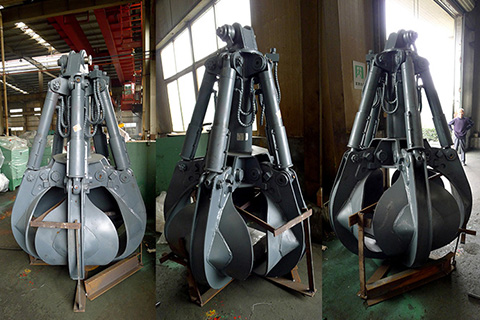

first rank Scrap Grapples, both standard products and customized design & manufacture.
Features:
>The teeth top & surface plates are made of Hardox 500.
>The cylinder seals are imported from Germany.
| Model | Capacity (Ton) | Volume (M3) | Height (mm) | Shipping Weight (kg) | Number of Petals |
| YD0.8-0.18-4-00 | 0.8 | 0.18 | 1400 | 220 | 4 |
| YD1-0.2-4-00 | 1 | 0.2 | 1450 | 260 | 4 |
| YD1.5-0.25-4-00 | 1.5 | 0.25 | 1550 | 300 | 4 |
| YD2-0.3-4-00 | 2 | 0.3 | 1600 | 340 | 4 |
| YD3-0.3-4-00 | 3 | 0.3 | 2150 | 1000 | 4 |
| YD3-0.4-4-00 | 3 | 0.4 | 2000 | 900 | 4 |
| YD3.5-0.5-4-00 | 3.5 | 0.5 | 2150 | 1000 | 4 |
| YD4-0.4-4-00 | 4 | 0.4 | 2200 | 1100 | 4 |
| YD4-0.6-4-00 | 4 | 0.6 | 2200 | 1100 | 4 |
| YD6-0.6-5-00 | 6 | 0.6 | 2400 | 1600 | 5 |
