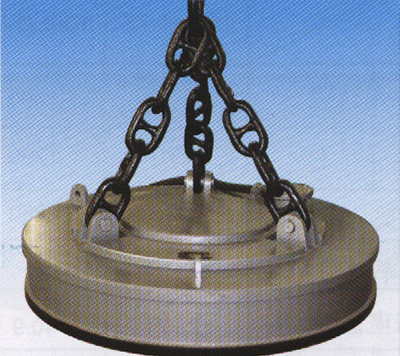

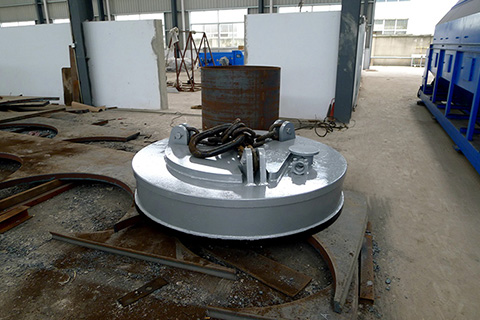

MW5 Lifting Magnet

Applications:
Used in metallurgical, mining, casting, mechanical & transportation industries for hoisting magnetic conductive materials like steel.

Features:
>Completely sealed welding structure, good humidity resistance;
>Reasonable magnetic path designing, quality low carbon steel plates, excellent mica with heat conductivity & heat resistance, all contributed to the thermal state working efficiency of lifting magnet;
>Optimized designing & special fabrication process enhanced the electric & mechanical characteristics of magnet exciting coil;
> Normal type lifting magnet: the electrified sustaining rate reaches 60% and ensures the working efficiency;
> Megathermal type lifting magnet: special heat insulation method is adopted, the temperature of attracted material exceeds 700 degree.

Technical Specifications:



MW5 LIFTING MAGNET (DURATION FACTOR TD-60%, DC-220V)

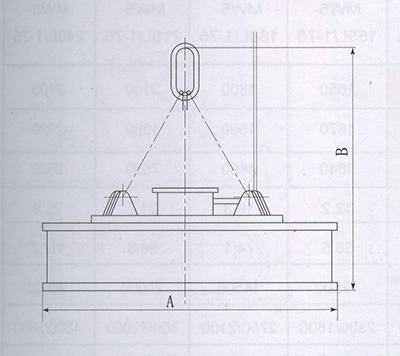

Model Dimensions Weight (kg) Power (kW) Cold Current (Amp) Capacity (kg)
A B Steel Ball Cast Iron Ingot Steel Scrap
MW5-70L/1 700 800 500 3.2 14.7 2500 380/200 120/100
MW5-110L/1 1100 1080 1250 7 35.1 6500 1000/800 450/400
MW5-130L/1 1300 1210 2050 11.9 54 8500 1400/1100 700/600
MW5-150L/1 1500 1220 2700 15.6 71 11000 1900/1500 1100/900
MW5-165L/1 1650 1230 3400 19.8 90 13000 2300/1800 1350/1040
MW5-180L/1 1800 1470 4100 22.4 102.4 14500 2750/2100 1600/1350
MW5-210L/1 2100 1800 6800 27.9 127 17000 3200/2500 2000/1600
MW5-240L/1 2400 2020 9000 33.9 154 26000 4800/3800 2850/2250
